Eradicating cracking in concrete
VapéRail has developed several anchoring systems whose robustness has been validated by 40 years of experience.
VapéRail has developed several anchoring systems whose robustness has been validated by 40 years of experience. VapéRail offers several designs, all of which share the common theme of robustness. Anchoring is always developed taking into account severe constraints on the track, such as over-tightening.
SLEEVE / PLASTIRAIL
High-performance rail anchoring system
The Plastirail range enables rail fastening on concrete supports. It is available up to 25 mm, with lengths from 115 to 140 mm. This range is compatible with all screw-fastened rail fastening systems and suits all types of concrete supports (reinforced, pre-stressed, post-stressed, ground beams, etc.).
- Sleeve 22–115 — Part No. 09237593
- Sleeve 22–130 — Part No. 09237592
- Insert 22–115 (U) — Part No. 09237591
NV ANCHOR
High-performance fastening for rail clips on concrete supports
The NV anchor secures the rail to SNCF-approved concrete supports. It enables the installation of rail fastening systems on concrete supports. It is compatible with all screw-fastened rail fastening systems and suits all types of concrete supports (reinforced, pre-stressed, post-stressed, ground beams, etc.).
- NV Anchor — Part No. 09287506
RAIL STOP
High-performance rail anchoring system
The insulating rail stop is positioned between the elastic fastening and the steel rail. It allows precise adjustment of the rail gauge while ensuring electrical insulation from the elastic fastening.
- Nabla insulator
- R18
- R15
- Simplex
- Matra — Part No. 9252050
FASTCLIP
High-performance fastening for clips on concrete supports
These systems are compatible with all categories of rail networks. They are specifically designed to deliver high efficiency during track installation, thanks to the use of mechanized equipment.
- Fastclip insert — Part No. 09252050
- T17 stop — Part No. 09237480
- T8 stop — Part No. 09237480
URBAN

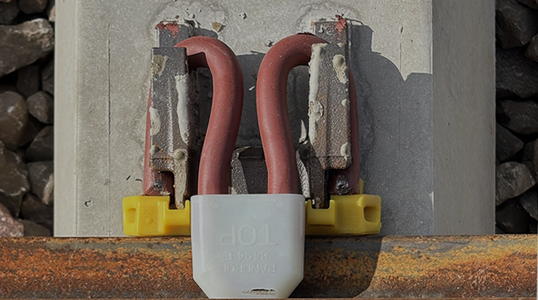

PLASTITRAM
Optimal rail retention
The system secures the rail to concrete supports. It is made up of several components:
- Fasteners (lag screws and Plastirail insulating insert)
- Baseplate (saddle)
- NABLA insulating stop
- NABLA shims
- Protective cover
VAL
Next-generation fastening
Val fastenings are the new generation of fastening systems for automated rubber-tyred metros. Designed to deliver greater flexibility and performance, they improve durability and make maintenance easier.
- VAL
- NeoVal
